Components & Locking Systems

Highly engineered feet need highly engineered components. Typically, catastrophic failures happen at the component level. College Park carefully designed our line of endo components using the highest grade of titanium, stainless steel, and aluminum for superior outcomes and peace of mind. College Park’s robust line of endoskeletal components can provide the right solution for almost any prosthesis.

A good locking system is also key to a functional, reliable prosthesis. Made with high strength nylon, College Park’s C100 shuttle lock and accessories can give amputees the confidence to go through the day with a pin-lock system.

Category: Lower Limb

Request a Quote

Heavy Duty/Economy

HEAVY DUTY

Material: Stainless Steel | Weight Limit: 400 lbs (181 kg)

Component	Build Height	Weight	Part Number

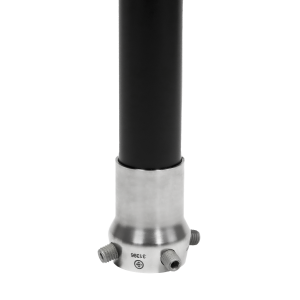

LOW-PROFILE TUBE ADAPTER 250 mm 34 mm diameter	57 mm (MIN)	302 g (MAX)	TA S250 34
LOW-PROFILE TUBE ADAPTER 430 mm/ 34 mm diameter	57 mm (MIN)	425 g (MAX)	TA S430 34
TUBE CLAMP 34 mm diameter	55 mm	146 g	TC S 34
4-HOLE PYRAMID ADAPTER Standard	7 mm	118 g	4HPA S
4-HOLE PYRAMID RECEIVER Standard	17 mm	75 g	4HPR S

ECONOMY

Material: Stainless Steel | Weight Limit: 300 lbs (136 kg)

Components	Build Height	Weight	Part Number
LOW-PROFILE TUBE ADAPTER 250 mm 30 mm diameter	75 mm (MIN)	303 g (MAX)	TA S250 30
LOW-PROFILE TUBE ADAPTER 430 mm/ 30 mm diameter	57 mm (MIN)	418 g (MAX)	TA S430 30
TUBE CLAMP 30 mm diameter	51 mm	140 g	TC S 30
4-HOLE PYRAMID ADAPTER Standard	7 mm	118 g	4HPA S
4-HOLE PYRAMID RECEIVER Standard	17 mm	75 g	4HPR S

Titanium

Material: Titanium | Weight Limit: 300 lbs (136 kg)

Component	Build Height	Weight	Part Number
LOW-PROFILE TUBE ADAPTER 250 mm 30 mm diameter	57 mm (MIN)	221 g (MAX)	TA T250 30
LOW-PROFILE TUBE ADAPTER 430 mm/30 mm diameter	57 mm (MIN)	337 g (MAX)	TA T430 30
TUBE CLAMP 30 mm diameter	51 mm	82 g	TC T
DOUBLE ENDED ADAPTER 35mm	35mm	95 g	DR T35
DOUBLE ENDED ADAPTER 45mm	45mm	110 g	DR T45
DOUBLE ENDED ADAPTER 60mm	60mm	123 g	DR T60
DOUBLE ENDED ADAPTER 75mm	75mm	136 g	DR T75
4-HOLE PYRAMID RECEIVER Standard	17 mm	64 g	4HPR T
4-HOLE PYRAMID RECEIVER Rotatable	19 mm	90 g	4HPRR T
4-HOLE PYRAMID ADAPTER Standard	7 mm	46 g	4HPA T
4-HOLE PYRAMID RECEIVER Rotatable	9.5 mm	77 g	4HPAR T
4-HOLE PYRAMID OFFSET Axial	7 mm	55 g	4HPA AO T
4-HOLE PYRAMID OFFSET Diagonal	7 mm	64 g	4HPA DO T
4-HOLE PYRAMID ADAPTER w/Pin-Lock Hole	7 mm	44 g	4HPH T
4-HOLE PYRAMID ADAPTER w/Pin-Lock Hole Rotatable	7 mm	74 g	4HPHR T

Pediatric/Geriatric

Pediatric

Material: Titanium | Weight Limit: 165 lbs (75 kg)

Component	Build Height	Weight	Part Number
LOW-PROFILE TUBE ADAPTER* 300 mm 22 mm diameter	47 mm (MIN)	169 g (MAX)	TA T300 22
TUBE CLAMP* 22 mm diameter	39 mm	46 g	TC T 22
LOW-PROFILE TUBE ADAPTER 300 mm 25 mm diameter	47 mm (MIN)	209 g (MAX)	TA T300 25
TUBE CLAMP 25 mm diameter	39 mm	45 g	TC T 25
4-HOLE PYRAMID RECEIVER Standard	15 mm	44 g	4HPR TP
4-HOLE PYRAMID RECEIVER Rotatable	16 mm	50 g	4HPRR TP
4-HOLE PYRAMID ADAPTER Standard	8 mm	36 g	4HPA TP
4-HOLE PYRAMID ADAPTER Rotatable	9 mm	56 g	4HPAR TP

Geriatric

Material: Titanium | Weight Limit: 165 lbs (75 kg)

	Component	Build Height	Weight	Part Number
	LOW-PROFILE TUBE ADAPTER 300 mm 25 mm diameter with 30 mm adult receiver	52 mm (MIN)	242 g (MAX)	TA T300 2530
	TUBE CLAMP 25 mm diameter with 30mm adult receiver	45 mm	83 g	TC T 2530
